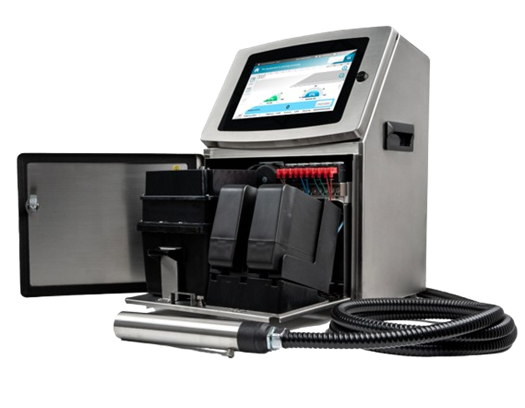

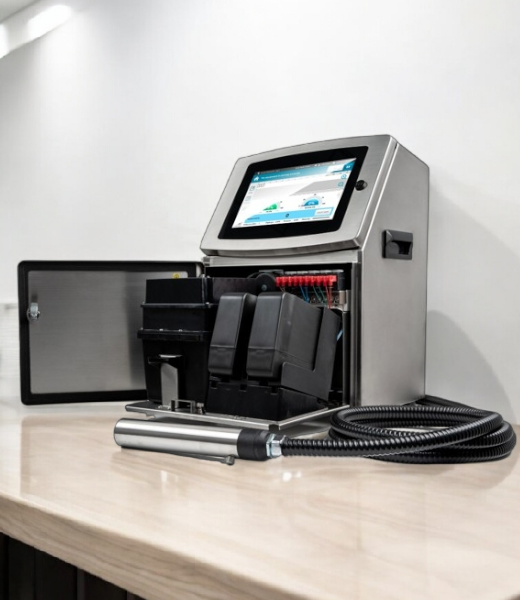

Continuous InkJet Printer
Continuous InkJet Printer
RAJMARK is dedicated to the research and development, production, sales, and service of a comprehensive range of inkjet marking products and components, delivering innovative marking solutions to global users with cutting-edge technology.
Printing Parameters
Ink Type
High adhesion, high temperature resistance, food grade, oil resistance, dye ink.

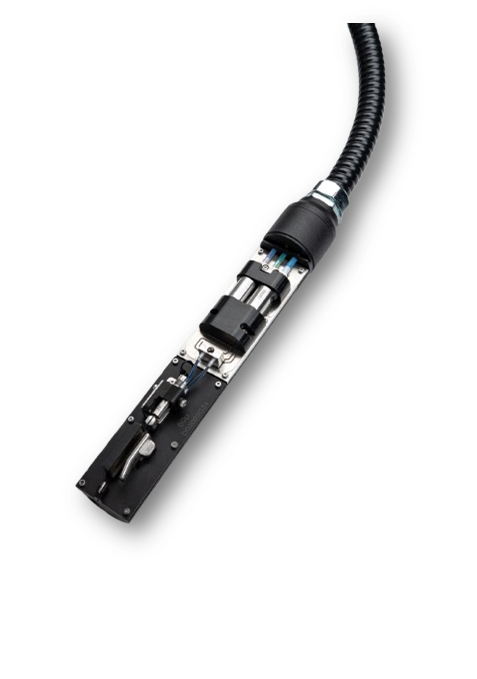

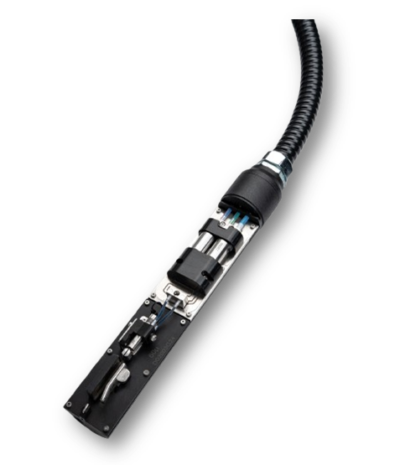

Print Head Duct
Efficient airflow management with a 3m reach.
Nozzle Specifications
Precision at 60u for optimal performance.
Printing Distance
Versatile range of 2-16mm for precise printing.
Printing Height
Adjustable range of 3-30mm for flexible printing.
Printing Lines
Supports 1 to 5 lines for customizable printing.
Counter
Supports up to 24 counters for efficient tracking.
Maximum Printing Speed
390m/min (5 dots in 1 line, 0.5 dot spacing)
Machine Parameters
New weight
Sturdy and reliable at 18kg.
Resolution
High clarity with 1280×800 pixels.
Protection Level
IP65 – Dust-tight and water-resistant.
Rated power
Efficient performance with 100W power consumption.
Certificates
CE & RoHS certified for quality and safety compliance.
Material
Durable SUS 304 stainless steel for long-lasting performance.
Power Parameters
Versatile input range of 100~240V AC for reliable operation.
Working Environment
Temperature 0-45°C/ Humidity 30-70%Rh
Operation System
Embedded Linux security operating system
Display Screen
10.1-inch capacitive touch display
Printing Parameters
Ink Type : High adhesion, high temperature resistance, food grade, oil resistance, dye ink
Print Head Duct : 3m , Nozzle Specifications : 60u
Printing Distance : 2-16mm, Printing Height : 3-30mm
Printing Lines : 1-5 lines, Counter : Up to 24 counters
Maximum Printing Speed : 390m/min (5 dots in 1 line, 0.5 dot spacing)
Machine Parameters
New weight : 18kg, Resolution: 1280×800,
Protection Level: IP65, Rated power: 100W,
Certificates: CE, RoHS, Material: SUS 304 stainless steel
Power Parameters: Input 100~240V AC,
Working Environment: Temperature 0-45°C/ Humidity 30-70%Rh
Operation System : Embedded Linux security operating system
Display Screen:10.1-inch capacitive touch display;
